IP68 144 Cores Dome Fiber Optic Splice Closure Manhole Optical Splicing Joint Box

  • 1
  • 2
  • 3

Brand Name : Fongko

Model Number : FK-J106M

Certification : Rohs, SGS, ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 10

Price : Negotiatable

Payment Terms : L/C, T/T

Product Name : Fiber Optic Enclosure

Material : PP+GF

Capacity : 96 Coes

Ports : 1 Oval 2Round

Size : 400×140mm

Sealing method : Heat shrinkable

Waterproof : IP68

Contact Now

144 Cores Dome Fiber Optic Fusion Splice Closure 2 inlets 4 outlets Mechanical Joint Box

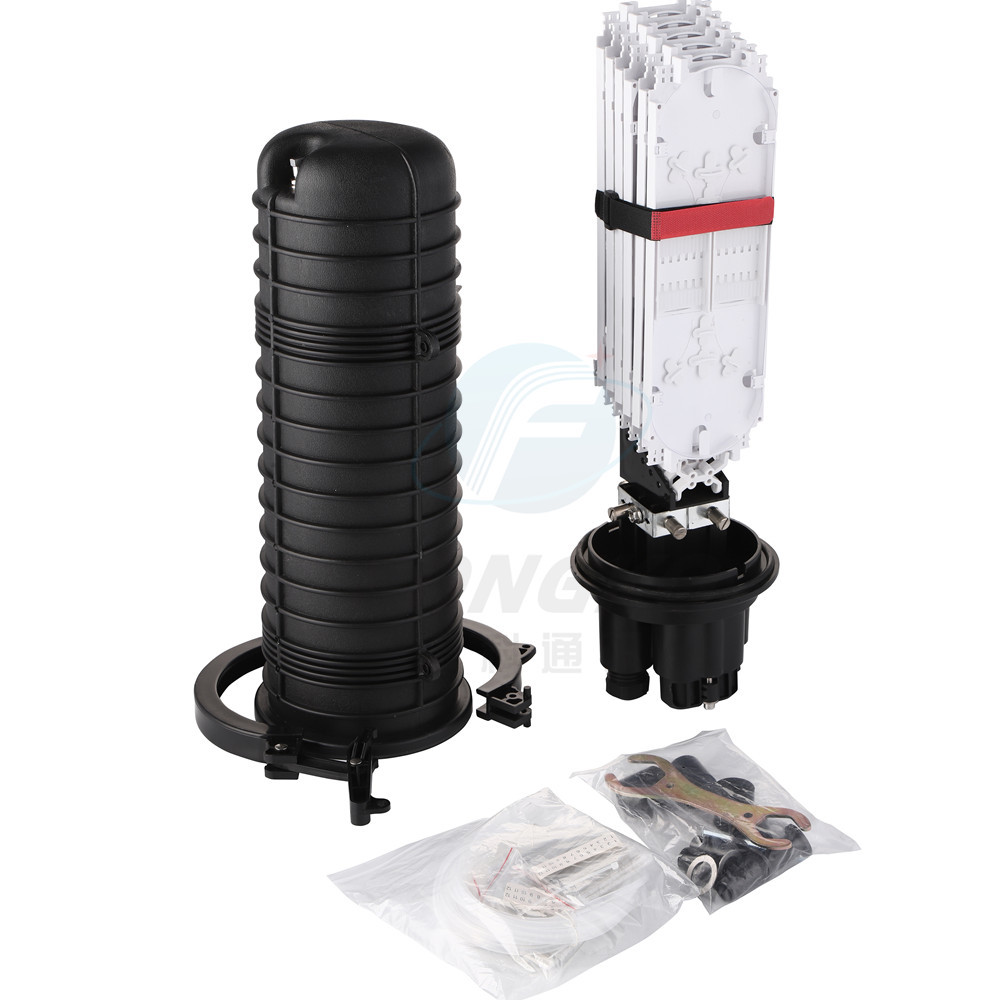

The Model GJS-D006 FOSC is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch. The box body and base are sealed with hoops and rubber.
The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually. The product can be opened again and reused after installation.
Features
1. Heat shrinkabIe seaIing structure.
2. High quaIity industriaI pIastic body materiaI.
3. 1 ovaI hoIe and 6 round hoIes for cabIe entrancee.
4. suitabIe for cabIe diameter 5 mm -38mm.
5. support aeriaI, underground, pipeIine, man hoIes, hand hoIes.
6. Protection IeveI reaches IP68.
7. 360 degrees access, fiber bending > 40mm.
8. Maximum capacity: 240 fibers.
9. Number of spIice trays: 10 pcs x 24F.

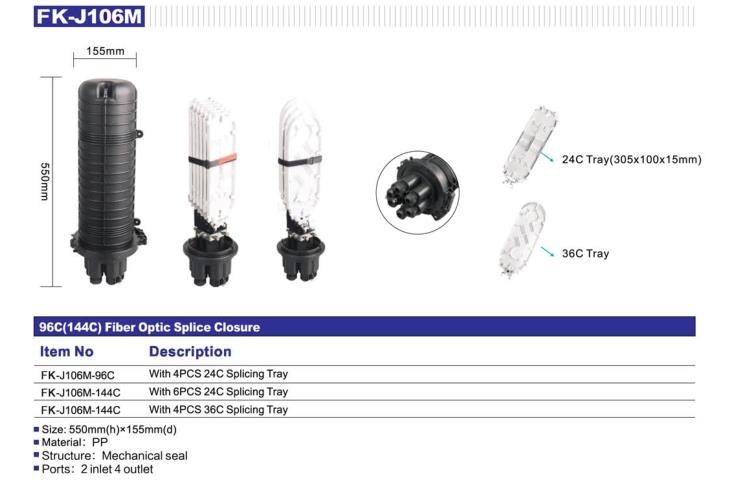

Mechanical Specifications
Item
Fiber Optic Splice Closure 2IN-4OUT
Dimension(mm)
550mm×155mm
Material
PP+GF
Weight(Kg)
3.07kg
Diameterof Cable(mm)
IN:8-18 OUT: 6-18
No. of Cable Inlet/Outlet
2IN-4OUT
Number of Fibers per Tray
36(single core)
Max. Number of Trays
4
Max. Number of Fibers
144(single core)
Sealing of Inlet/Outlet ports
Mechanical seal
Sealing of Shells
Silicon rubber

IP68 144 Cores Dome Fiber Optic Splice Closure Manhole Optical Splicing Joint BoxIP68 144 Cores Dome Fiber Optic Splice Closure Manhole Optical Splicing Joint Box
